Products

Antenna Testing Equipment & Products
SUNYIELD specializes in the development and manufacture of antenna measurement systems, antenna testing equipment, turntables, and RF chambers. Our products are powerful and internationally certified.
  • 0.1Hz-80.1kHz/1.6GHz-8GHz/0.8GHz-8GHzAudioRF Chamber is a comprehensive and fast OTA testing and audio measurement solution suitable for the mass production stage of intelligent terminal products, as well as fields such as acoustic research, audio equipment testing, and audio product development. This device combines the characteristics of fast OTA testing and audio measurement, supporting various communication standards such as 2G/3G/4G/5G, Wi Fi, Bluetooth, NB IoT, eMTC, LoRa, Zigbee, etc., and providing an ideal environment for audio measurement and analysis.

    AudioRF-Chamber Audio and RF dual function test chamber

    0.1Hz-80.1kHz/1.6GHz-8GHz/0.8GHz-8GHz

    AudioRF Chamber is a comprehensive and fast OTA testing and audio measurement solution suitable for the mass production stage of intelligent terminal products, as well as fields such as acoustic research, audio equipment testing, and audio product development. This device combines the characteristics of fast OTA testing and audio measurement, supporting various communication standards such as 2G/3G/4G/5G, Wi Fi, Bluetooth, NB IoT, eMTC, LoRa, Zigbee, etc., and providing an ideal environment for audio measurement and analysis.

  • The SYCR series is a mobile compact range released by Sunyield for production line testing in the millimeter wave detection field. It has the characteristics of small size, easy deployment, convenient mobility, and fast testing, mainly used for testing phased array antennas, automotive radars and their components, millimeter wave military and police radar products, and civilian millimeter wave antennas (millimeter wave reflection antennas, 5G millimeter wave communication antennas)

    SYCR Miniaturized mobile compact range

    The SYCR series is a mobile compact range released by Sunyield for production line testing in the millimeter wave detection field. It has the characteristics of small size, easy deployment, convenient mobility, and fast testing, mainly used for testing phased array antennas, automotive radars and their components, millimeter wave military and police radar products, and civilian millimeter wave antennas (millimeter wave reflection antennas, 5G millimeter wave communication antennas)

  • The SY-CATR3000-RCS of compact range products can meet various product testing needs of customers (including base stations, terminals, active antennas, radars, phased array antennas, etc., and are compatible with CPE waiting test pieces). Sunyield Technology can customize design products according to customer requirements.

    SY-CATR3000-RCS

    The SY-CATR3000-RCS of compact range products can meet various product testing needs of customers (including base stations, terminals, active antennas, radars, phased array antennas, etc., and are compatible with CPE waiting test pieces). Sunyield Technology can customize design products according to customer requirements.

  • Sunyield SY-SPS is a single probe sliding rail spherical near-field testing scheme, mainly suitable for antenna testing in civil antenna manufacturers and military RCS testing. Scattering near-field measurement is developed on the basis of radiation near-field measurement, and the near-field measurement of antennas has become a universal testing standard internationally, with higher accuracy than far-field testing. There are also three sampling methods for scattering near-field measurement, namely plane scattering near-field measurement, cylindrical scattering near-field measurement, and spherical scattering near-field measurement. Spherical near-field measurement has the advantages of high testing efficiency, large credible angle domain, and large amount of information

    SY-SPS

    Sunyield SY-SPS is a single probe sliding rail spherical near-field testing scheme, mainly suitable for antenna testing in civil antenna manufacturers and military RCS testing.
    Scattering near-field measurement is developed on the basis of radiation near-field measurement, and the near-field measurement of antennas has become a universal testing standard internationally, with higher accuracy than far-field testing. There are also three sampling methods for scattering near-field measurement, namely plane scattering near-field measurement, cylindrical scattering near-field measurement, and spherical scattering near-field measurement. Spherical near-field measurement has the advantages of high testing efficiency, large credible angle domain, and large amount of information

  • 2GHz upto 200GHz SUNYIELD SY-CATR series is a compact range antenna measurement system for millimeter wave detection, supporting frequencies from 2GHz up to 200GHz.The SYCR series is available in different sizes to set up excellent experimental environments for millimeter-wave radar testing and design. It offers flexible test options for testing automotive radars, millimeter wave military/police radar products, and civilian millimeter wave antennas, including reflector antennas and 5G communication antennas.

    SY-CATR Compact Range Measurement System

    2GHz upto 200GHz
    SUNYIELD SY-CATR series is a compact range antenna measurement system for millimeter wave detection, supporting frequencies from 2GHz up to 200GHz.The SYCR series is available in different sizes to set up excellent experimental environments for millimeter-wave radar testing and design. It offers flexible test options for testing automotive radars, millimeter wave military/police radar products, and civilian millimeter wave antennas, including reflector antennas and 5G communication antennas.

  • 400MHz-8.5GHz / 600MHz-12GHz / 400MHz~18GHz SUNYIELD SY-68 Multi-Probe spherical near-field antenna measurement system supports measurements in the 400MHz-8.5GHz, 600MHz-12GHz, and 400MHz-18GHz frequency and a quiet zone measurement range of 2.5 meters in diameter. It offers a more extensive measurement range, higher sampling density, and the ability to measure small base station antennas. It is ideal for testing and research institutions such as terminal manufacturers, third-party laboratories, and base station research and development.

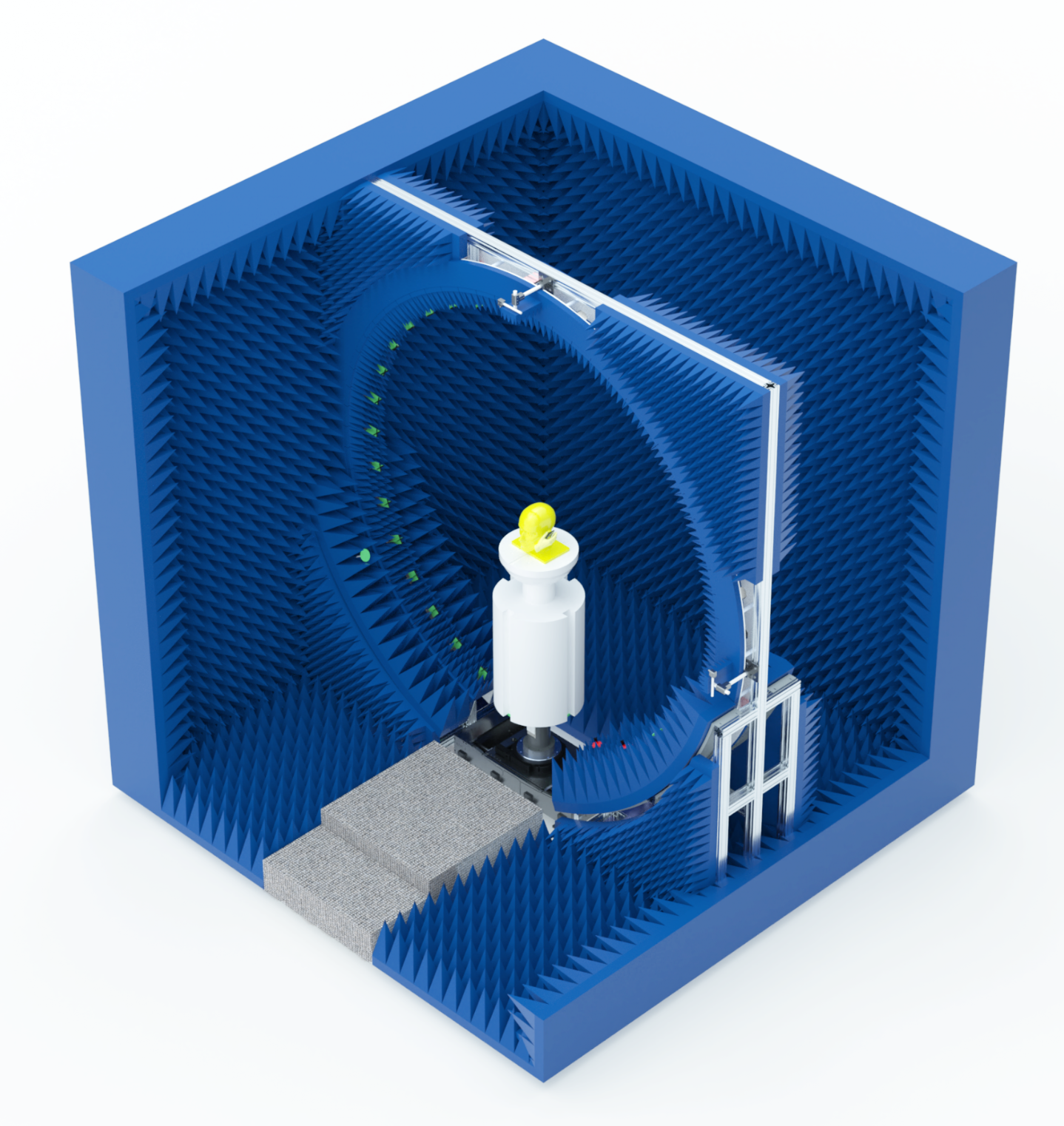

    SY-68 SISO&MIMO Antenna Measurement System

    400MHz-8.5GHz / 600MHz-12GHz / 400MHz~18GHz
    SUNYIELD SY-68 Multi-Probe spherical near-field antenna measurement system supports measurements in the 400MHz-8.5GHz, 600MHz-12GHz, and 400MHz-18GHz frequency and a quiet zone measurement range of 2.5 meters in diameter. It offers a more extensive measurement range, higher sampling density, and the ability to measure small base station antennas. It is ideal for testing and research institutions such as terminal manufacturers, third-party laboratories, and base station research and development.

  • 690MHz-8.5GHz / 400MHz-8.5GHz SUNYIELD SCR-500 cylindrical near-field antenna measurement system, supporting the 400MHz~8.5GHz frequency and a quiet zone measurement range of 3 meters in diameter. The SCR-5000 is an innovative solution for cylinder near-field tests, 3D antenna patterns, and directivity measurement of antennas. It offers space and cost savings as well as accurate results.

    SCR Cylindrical Antenna Measurement System

    690MHz-8.5GHz / 400MHz-8.5GHz
    SUNYIELD SCR-500 cylindrical near-field antenna measurement system, supporting the 400MHz~8.5GHz frequency and a quiet zone measurement range of 3 meters in diameter. The SCR-5000 is an innovative solution for cylinder near-field tests, 3D antenna patterns, and directivity measurement of antennas. It offers space and cost savings as well as accurate results.

  • 650 MHz - 8.5GHz   The SUNYIELD Mini-Chamber is a portable antenna measurement system with an RF-shielded room. It is specifically designed for testing small antenna products within the frequency range of 650 MHz to 8.5 GHz. This small mobile antenna measurement system offers a cost-effective solution for small antenna designs by decreasing the cost of the chamber to move. With its compact size (36 cm diameter), it is highly versatile and widely utilized by mobile phone manufacturers, research and development teams, and production lines for ensuring the consistency and validation of small antennas.

    Mini-Chamber Antenna Measurement System

    650 MHz – 8.5GHz
    The SUNYIELD Mini-Chamber is a portable antenna measurement system with an RF-shielded room. It is specifically designed for testing small antenna products within the frequency range of 650 MHz to 8.5 GHz. This small mobile antenna measurement system offers a cost-effective solution for small antenna designs by decreasing the cost of the chamber to move. With its compact size (36 cm diameter), it is highly versatile and widely utilized by mobile phone manufacturers, research and development teams, and production lines for ensuring the consistency and validation of small antennas.

  • 400MHz - 8.5GHz / 600MHz - 12GHz/400MHz - 18 GHZSUNYIELD SY-24 standard antenna measurement system, supporting the frequency 400 MHz - 8.5 GHz, 600MHz - 12GHz, 400MHz - 18GHz three versions, can measure small and medium-sized DUTs. SY-24 series is widely used in mobile phone terminal antenna R&D, 5G OTA testing purposes, and scientific research institutions terminal antenna measurement, which is the mainstream antenna measurement system.

    SY-24 Antenna Measurement System

    400MHz – 8.5GHz / 600MHz – 12GHz/400MHz – 18 GHZ

    SUNYIELD SY-24 standard antenna measurement system, supporting the frequency 400 MHz – 8.5 GHz, 600MHz – 12GHz, 400MHz – 18GHz three versions, can measure small and medium-sized DUTs. SY-24 series is widely used in mobile phone terminal antenna R&D, 5G OTA testing purposes, and scientific research institutions terminal antenna measurement, which is the mainstream antenna measurement system.

  • Micro OTA Shielded Room Test System : SUNYIELD Micro-Chamber is a fast OTA testing solution for most intelligent terminal products in the mass production stage.Two Specifications: Micro-Chamber LF Model (0.8GHz-8GHz) and Micro-Chamber HF Model (1.6GHz-8GH.)Advantages: Comprehensive functions, fast testing speed, small size, strong adaptability, customizability, and low cost.

    Micro-Chamber Production Line Testing Series

    Micro OTA Shielded Room Test System : SUNYIELD Micro-Chamber is a fast OTA testing solution for most intelligent terminal products in the mass production stage.

    Two Specifications: Micro-Chamber LF Model (0.8GHz-8GHz) and Micro-Chamber HF Model (1.6GHz-8GH.)

    Advantages: Comprehensive functions, fast testing speed, small size, strong adaptability, customizability, and low cost.

  • SY-Radar vehicle mounted millimeter wave radar measurement system, with high test frequency band and small size, is mainly used for testing the relevant indicators of 60/77/79 GHz vehicle mounted millimeter wave radar, which can realize the measurement and calibration of the target range and target amplitude of the tested object radar; At the same time, the relative angle can be calculated according to the target distance position, and the target angle can be measured and calibrated

    SY-Radar

    SY-Radar vehicle mounted millimeter wave radar measurement system, with high test frequency band and small size, is mainly used for testing the relevant indicators of 60/77/79 GHz vehicle mounted millimeter wave radar, which can realize the measurement and calibration of the target range and target amplitude of the tested object radar; At the same time, the relative angle can be calculated according to the target distance position, and the target angle can be measured and calibrated

  • The design of the SPR-3000 Fast Measurement System for Base Station Antenna fills the blank of antenna radiation performance testing on mass production line. It greatly improves efficiency of current antenna radiation performance testing and adds circuit parameter measurement items to form a comprehensive set of fast antenna testing solution.

    SPR-3000

    The design of the SPR-3000 Fast Measurement System for Base Station Antenna fills the blank of antenna radiation performance testing on mass production line. It greatly improves efficiency of current antenna radiation performance testing and adds circuit parameter measurement items to form a comprehensive set of fast antenna testing solution.
