SY-193H-40G Antenna Measurement System
200 MHz – 40GHz

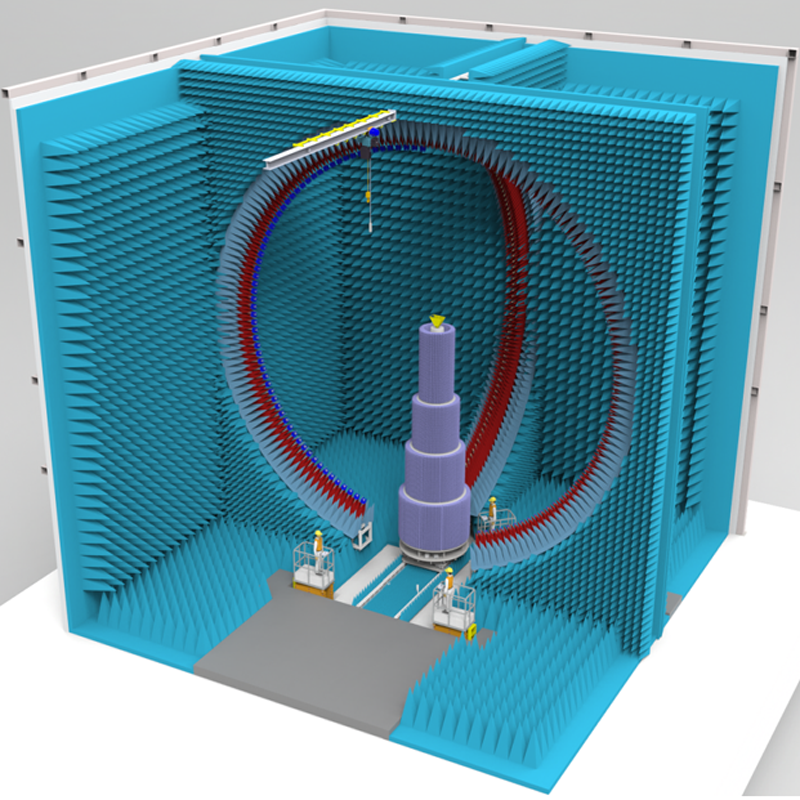

The SY‑193H‑40G Phased‑Array Spherical Near‑Field Antenna Measurement System is a turn‑key solution for characterizing broadband antennas from 200 MHz to 40 GHz. It performs conventional antenna tests as well as multi‑channel, multi‑beam and multi‑frequency‑point measurements. It supports radiation‑characteristic testing for monopulse, nulling, parabolic and planar antennas.
Graphical User Interface: Graphical test interface. The client intuitively displays test progress for easy operation. Customizable Positioner Fixture: The DUT fixture on the positioner can be customized per user requirements. Featuring quick‑mount and quick‑release devices, the product can be rapidly installed and removed. Temperature‑Humidity Monitoring & Smoke Alarm: Supports temperature‑humidity monitoring for anechoic chamber environment, as well as smoke detection and alarm functions. Instrument Compatibility: Compatible with mainstream instruments including R&S, Keysight, Ceyear and Anritsu. Remote Control: Remote control is available via API commands..
.
| Mini-Chamber System name | SY-193H-40G |
| Frequency bands | 200MHz-40GHz |
| Max. Dimension of DUT | ≥9m×9m |
| Max weight of DUT | ≥3.5 t |
| Typical dynamic range | ≥72dB |
| Shielding efficiency | ≥100dB @0.1GHz~18GHz≥90dB @18GHz~40GHz |

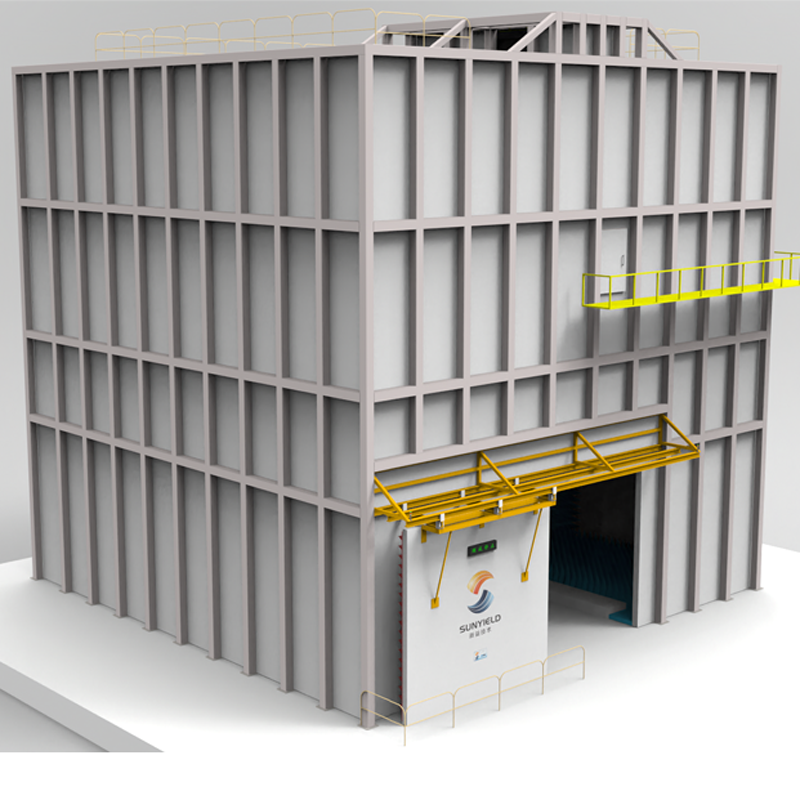

| Anechoic Chamber Internal Dimensions（L×W×H） | 20m×20m×18m |
| φ Angular resolution | 0.1° |
| θ Angular resolution | 2°：200MHz ~ 6GHz2°：6GHz ~ 18GHz5°：18GHz ~ 40GHz |
