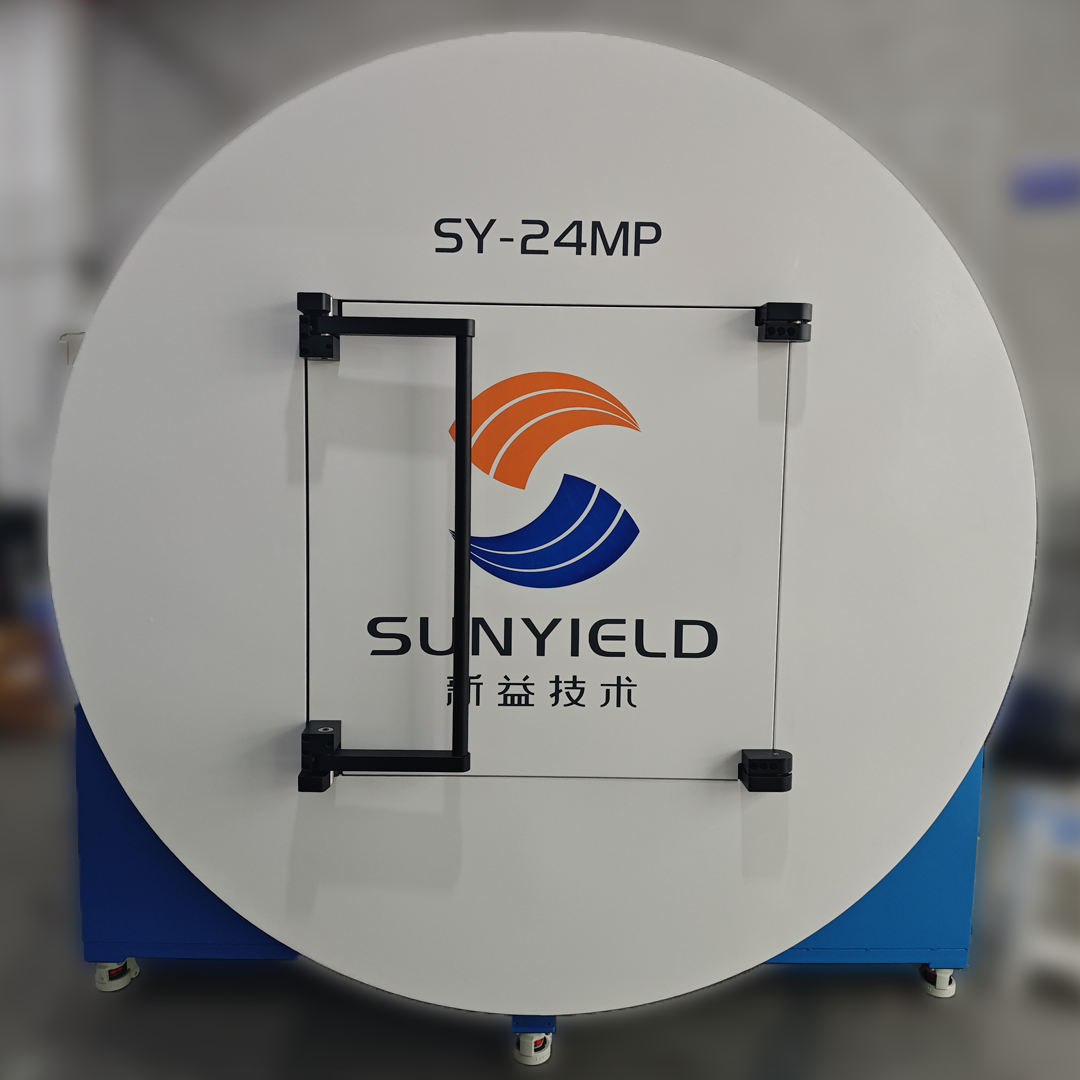

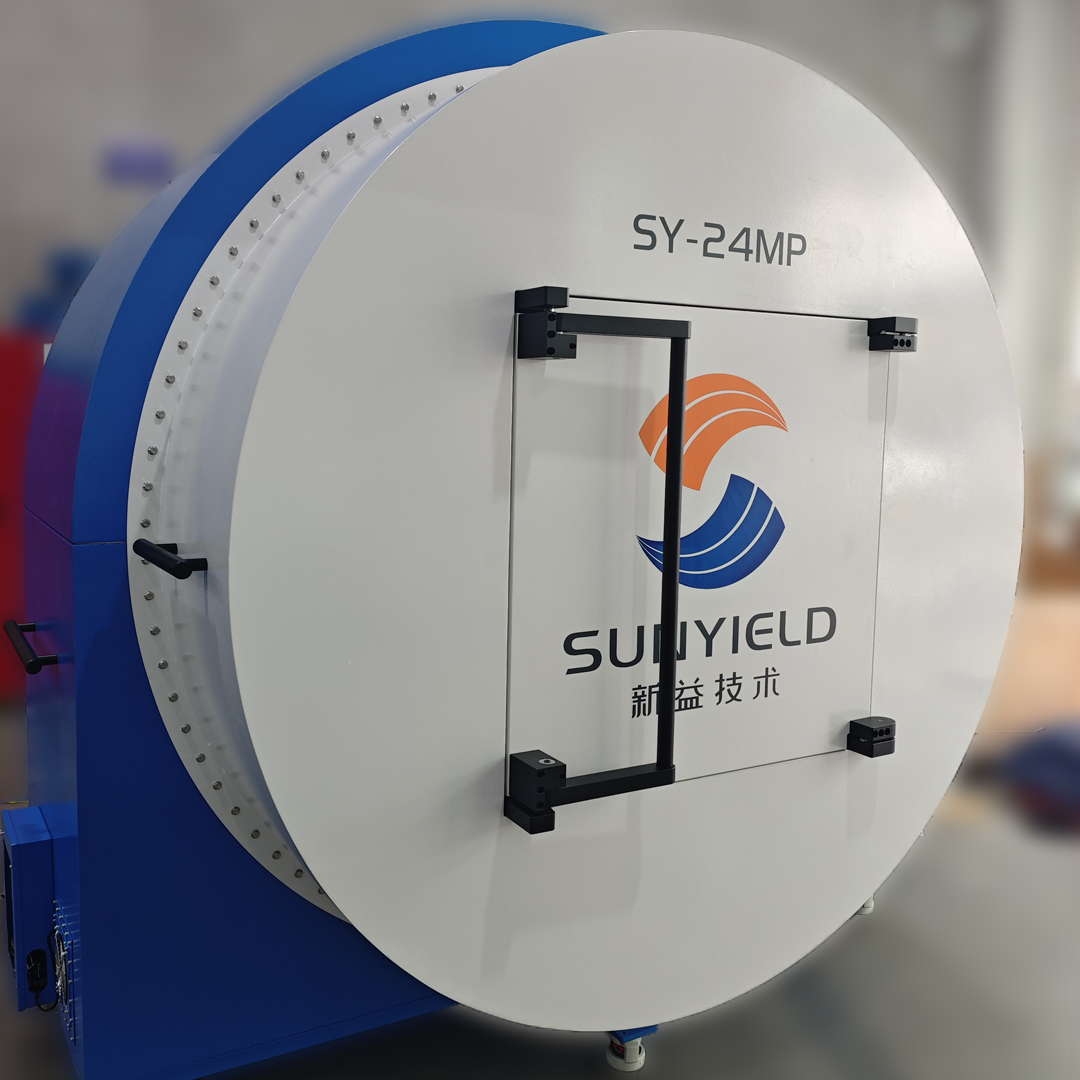

SY-24MP Antenna Measurement System
600 MHz – 10GHz

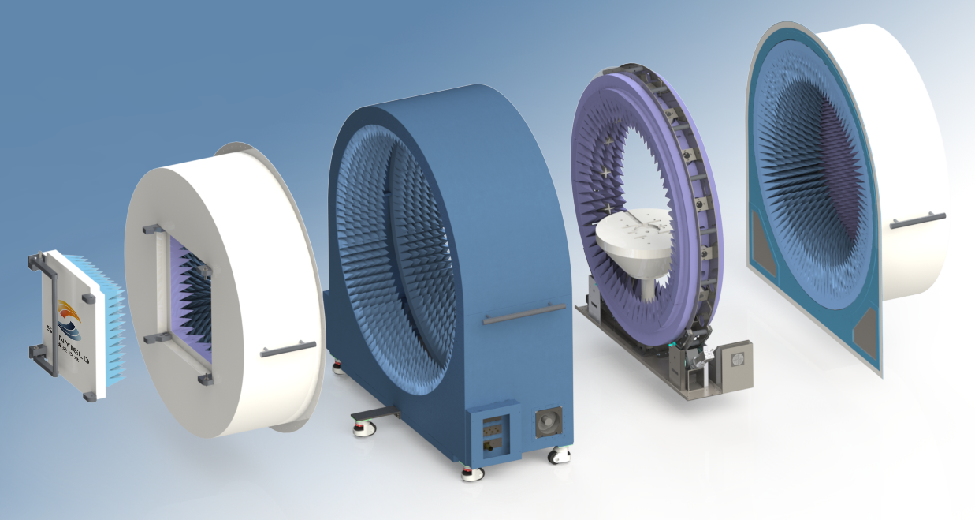

The SUNYIELD Mini-Chamber is a portable antenna measurement system with an RF-shielded room. It is specifically designed for testing small antenna products within the frequency range of 600 MHz to 10 GHz. This small mobile antenna measurement system offers a cost-effective solution for small antenna designs by decreasing the cost of the chamber to move. With its compact size (45 cm diameter), it is highly versatile and widely utilized by mobile phone manufacturers, research and development teams, and production lines for ensuring the consistency and validation of small antennas.
Faster Measurement：The symmetrical distribution of probes is applied. Thus, the object can be 3D measured completely as long as a 180-degree rotation is performed horizontally under normal circumstances.
Real-time Display：It allows real-time viewing of active and passive directivity diagram as well as active power and sensitivity.
Powerfulfunction：It supports the active measurement in most of the models such as 2G, 3G, 4G, WIFI , GPS and BT within the frequency range between 600MHz and 12GHz.Supports the passive measurement with the same frequency band. Through upgrade, can realized 18GHz high-frequency version of the passive test
Strong Compatibility：It is compatible with common network analyzers and general-purpose testers from renowned companies such as Keysight, Rohde &Schwarz , Anritsu and LitePoint .
Smooth upgrade：After upgrade of software and hardware, the system canconduct LTE – CA measurement. Also support 18GHz frequency band through upgrade.
| Frequency bands | 600MHz-10GHz |
| Max. Dimension of DUT | 45 cm |
| Max weight of DUT | 15kg |
| Typical dynamic range | 60-80dB |
| Shielding efficiency | ≦-80dB |
| External dimensions（L×W×H） | 2200*1754*2300mm |
| φ Angular resolution | 0.5° |
| θ Angular resolution | 15° |
