SY-35H Antenna Measurement System

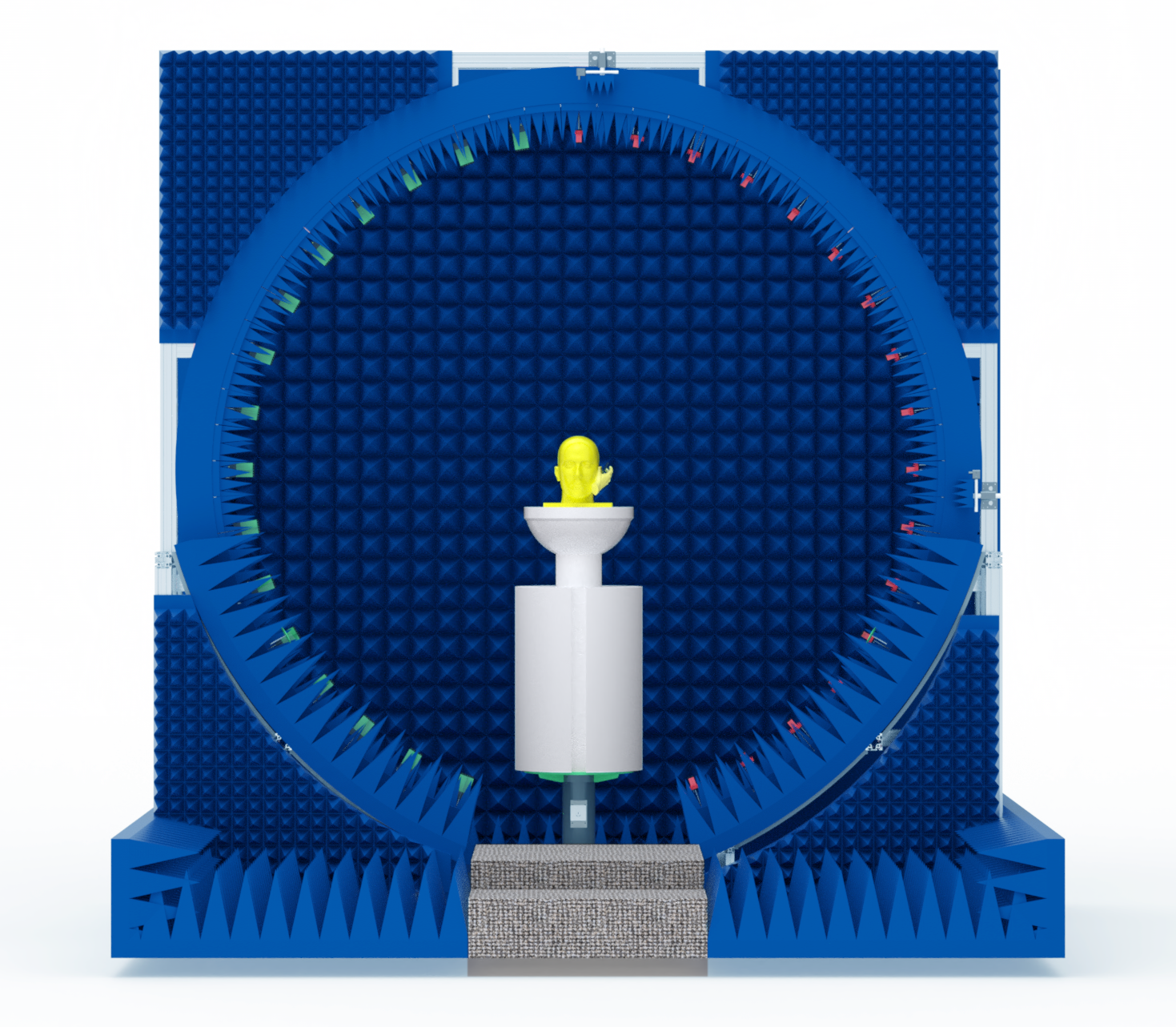

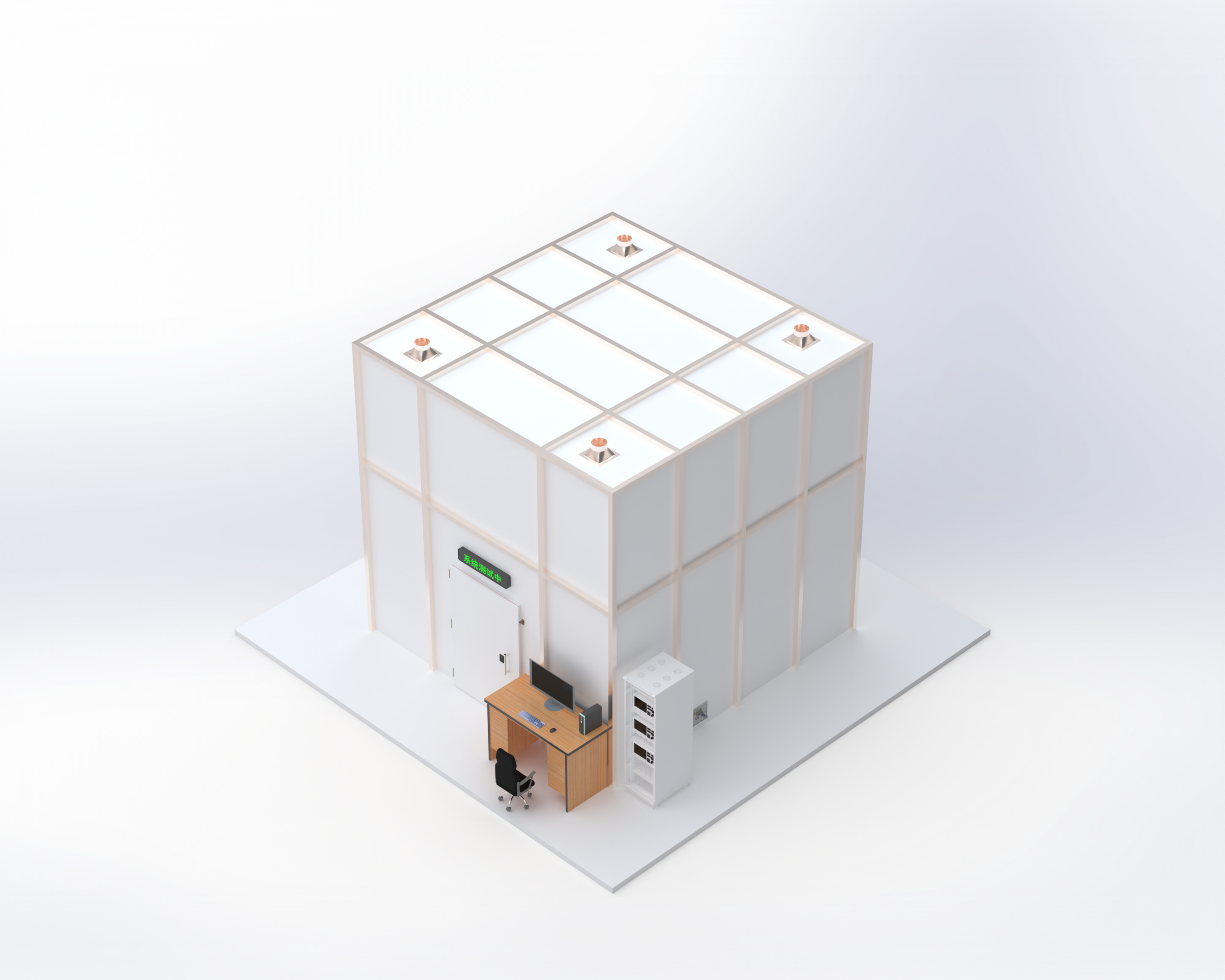

Product Overview:SUNYIELD SY-35 multi-probe standard antenna measurement includes a shielded room, a dual polarization circular arc array testing device, a high-precision multi axis turntable, RF accessories, testing and post-processing system software, etc. The low-frequency probe SY-P00406 covers 0.4GHz-6Hz, and the high-frequency probe SY-P0618 covers 6GHz-18GHz. By combining the two probe layouts, it can meet the testing needs of customers in the ultra wide frequency range of 0.4GHz-18GHz.Product Advantages:

• Faster Measurement：the symmetrical distribution of probes is applied. Thus, the object can be 3D measured completely as long as a 180-degree rotation is performed horizontally under normal circumstances.



• Real-time display：It allows real-time viewing of active and passive directivity diagram as well as active power and sensitivity.



• Powerful Function：It supports the active measurement in most of the models such as 2G, 3G, 4G, WIFI , GPS and BT within the frequency range between 400MHz and 6GHz.Supports the passive measurement with the same frequency band. Currently, it is a prevalent antenna measurement system. Through the upgrade, can achieve 6GHz-18GHz high-frequency version of the passive test. The MIMO measurement is also available by upgrading software.



• Strong Compatibility：It is compatible with common network analyzers and general-purpose testers from renowned companies such as Keysight, Rohde & Schwarz ,Anritsu and Litepoint .



• Smooth Upgrade：After upgrade of software and hardware, the system can be conducted LTE – CA measurement.
